Elemental Dynamics

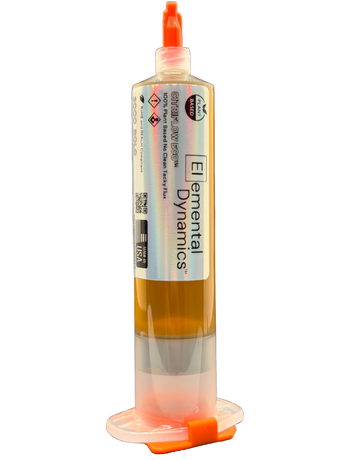

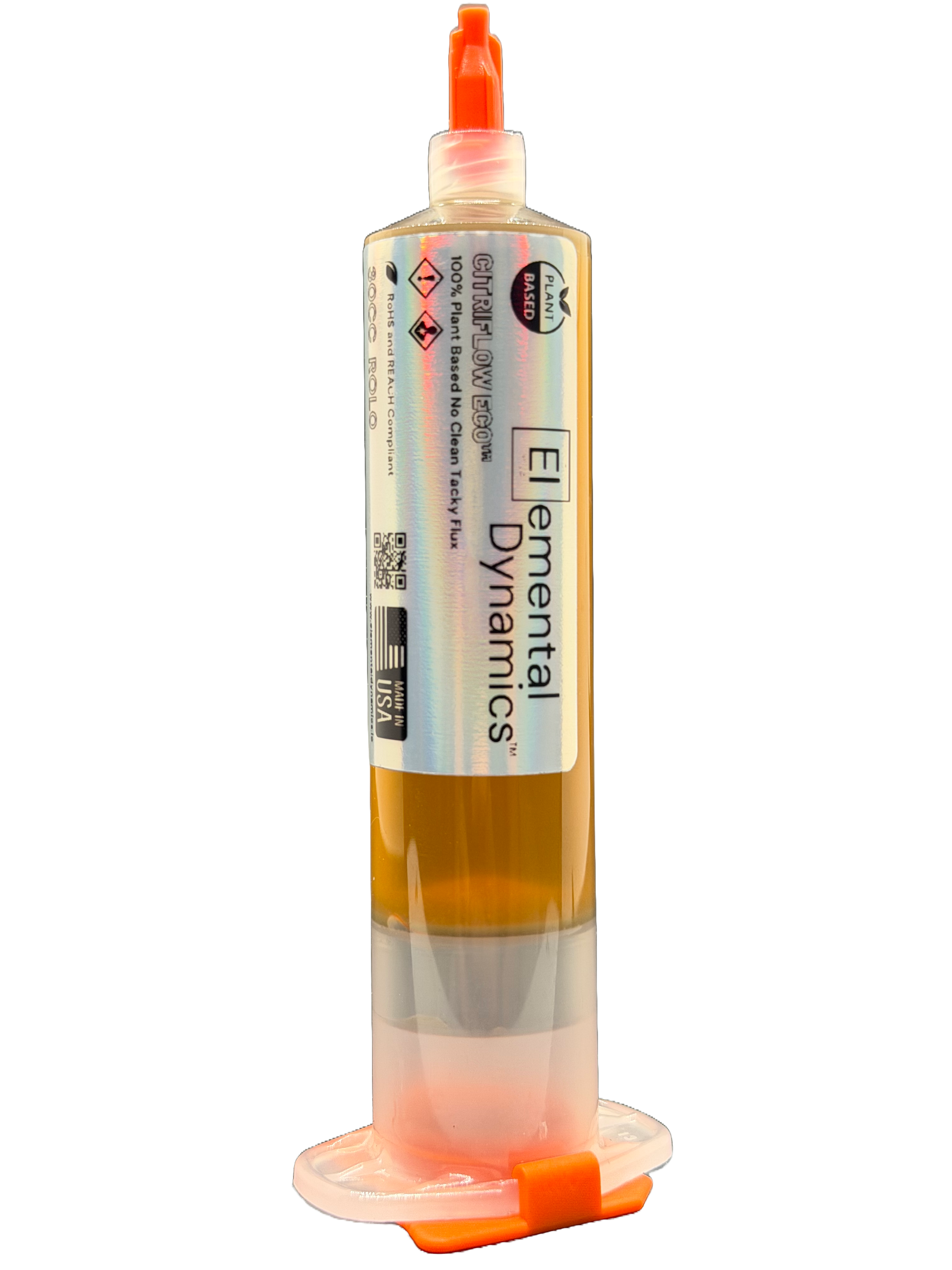

CitriFlow Eco™ 100% Plant-Based Tacky Flux Gel
Designed for demanding soldering applications, Citriflow Eco™ is a high-performance, no-clean tacky flux formulated entirely from plant-derived materials. Optimized for precision rework, BGA, and fine-pitch soldering, Citriflow Eco™ delivers consistent activation, strong oxide removal, and controlled wetting across a wide range of conditions.
As the world’s first 100% plant-based soldering flux, Citriflow Eco™ eliminates petroleum-based carriers and synthetic additives while maintaining professional-grade performance. Its extended activation profile provides a long working time, allowing for complex rework without premature burnout, while ensuring smooth solder flow and reliable joint formation.
Following reflow, Citriflow Eco™ leaves behind a thin, hard, encapsulating protective film. This residue is electrically insulating, non-corrosive, and does not require cleaning. Its exceptional transparency allows for clear post-process inspection of solder joints and pad conditions.
Fully halide-free and compliant with IEC 61249-2-21 standards, Citriflow Eco™ also meets RoHS and REACH compliance requirements.
Transparency:
Exceptionally clear residue for easy post-solder inspection
Type:
No-clean (ROL0), plant-derived rosin system, optimized for precision work
Odor:
Light natural citrus terpene fragrance
Halogen-Free:
Fully compliant with IEC 61249-2-21 standards
Hydrophobic:
Repels moisture, providing protection and long-term stability
Activation Profile:
Extended activation time for longer working window and complex rework
Residue Behavior:
Forms a hard, transparent, encapsulating protective film after reflow
Ideal Applications:
Precision PCB rework, BGA, flip chip, fine-pitch soldering, and general electronics repair
Citriflow Eco™ is universal and compatible with the following leaded and lead-free alloys:
Lead-Based Solder Alloys:
- Sn63/Pb37 (63% Tin, 37% Lead) — Melting Point: 183°C
- Sn60/Pb40 (60% Tin, 40% Lead) — Melting Point: 183–190°C
Lead-Free Solder Alloys:
- SAC305 (96.5% Tin, 3.0% Silver, 0.5% Copper) — Melting Point: 217–221°C
- SAC405 (95.5% Tin, 4.0% Silver, 0.5% Copper) — Melting Point: 217–221°C
- Sn100C (99.3% Tin, 0.7% Copper) — Melting Point: 227°C
High-Temperature Lead-Free Alloys:
- Sn95/Ag5 (95% Tin, 5% Silver) — Melting Point: 221–245°C
Low-Temperature Lead-Free Alloys:
- Sn42/Bi58 (42% Tin, 58% Bismuth) — Melting Point: 138°C
